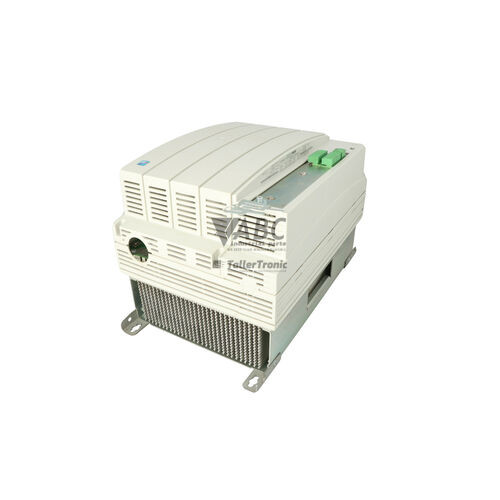

Lenze 00400033 EVF8212-E – 8200 Series 1.5 kW Frequency Inverter
Het item werd toegevoegd aan uw offerteaanvraag
Product Information
The Lenze 00400033, designated by model number EVF8212-E, is a compact 1.5 kW (2.0 HP) frequency inverter within the Lenze 8200 series engineered for precise speed and torque regulation of standard 4-pole AC asynchronous motors. Operating on a 230 V AC supply across an input range of 190 V to 260 V AC (supporting both single-phase and three-phase connections), this drive delivers a rated output current of 7.0 A with a peak output current of 10.5 A, representing a 150% overload capability for 60 seconds. Designed for panel mounting inside control cabinets, the unit features an integrated RFI/EMC filter to meet strict electromagnetic interference requirements without requiring extra suppression hardware. It supports flexible motor control modes, including linear or quadratic V/f characteristic curves as well as sensorless vector control (SLVC) for demanding mechanical loads.
Connecting and installing a replacement EVF8212-E inverter requires matching both control terminal wiring and fieldbus interfaces. The drive features programmable control terminals, providing four digital inputs, one digital/relay output, one configurable analog input (0–10 V or 0/4–20 mA), and one analog output (0–10 V). A built-in function module slot enables integration with fieldbus systems using optional plug-in modules such as the EMF2133IB PROFIBUS-DP module, EMF2171IB or EMF2172IB CANopen modules, or the EMZ2102IB LECOM RS232/RS485 module. Putting a spare drive into service is rarely plug-and-play; parameters must be transferred using an EMZ8201BB or EMZ8202BB operating keypad or uploaded via Lenze Global Drive Control (GDC) software. ABC Industrial Parts can support this commissioning process by extracting and restoring parameter sets from existing units to ensure full process compatibility.
Diagnostics on the EVF8212-E are provided through front panel status LEDs and parameter registers. A continuous green LED indicates normal operational run mode, while a flashing green LED signifies a controller inhibit or ready state. A solid red LED signals an active TRIP condition or drive fault, with historical codes accessible via register C0168 using the operating keypad or GDC software. First-line troubleshooting should verify input power across terminals L1, L2, and L3, motor insulation, and parameter acceleration or deceleration settings like C0012 and C0013. Hardware-level faults such as persistent EEPROM memory failures (EE) or internal power stage faults (H05) cannot be serviced on-site; in these cases, ABC Industrial Parts offers tested replacement units and repair options to minimize production downtime.
Technical Specifications
| Manufacturer | Lenze |
| Part Number | 00400033 |
| Model / Type | EVF8212-E |
| Product Family | 8200 Series |
| Component Type | Frequency Inverter |
| Rated Power | 1.5 kW |
| Supply Voltage | 230 V AC |
| Supply Voltage Range | 190 - 260 V AC |
| Rated Output Current | 7.0 A |
| Maximum Output Current | 10.5 A |
| Output Voltage | 230 V AC |
| Output Frequency Range | 0 - 480 Hz |
| Switching Frequency | 8 kHz |
| Control Method | V/f Characteristic Control and Sensorless Vector Control (SLVC) |
| EMC Filtering | Integrated RFI / EMC Filter |
| Mounting Type | Panel Mounting |
| Digital Inputs | 4 |
| Digital Outputs | 1 |
| Analog Inputs | 1 (0-10 V / 0/4-20 mA) |
| Analog Outputs | 1 (0-10 V) |
Programming and Configuration
Drive configuration and parameter management for the Lenze EVF8212-E frequency inverter are conducted using Lenze Global Drive Control (GDC) software or an attachable operating keypad, such as the EMZ8201BB or EMZ8202BB. These tools allow maintenance technicians to configure motor settings, adjust acceleration and deceleration ramp times, set maximum frequency limits, and assign control terminal functions.
When commissioning a new unit or troubleshooting an existing installation, specific parameters govern key drive behavior. Key settings include parameter C0012 for acceleration ramp time, C0013 for deceleration ramp time, and C0011 for setting the maximum motor speed limit. If parameter corruption occurs or a complete reconfiguration is required, loading standard factory default parameters can be initiated by executing parameter C0002.
Communication and System Integration
The EVF8212-E drive integrates into plant automation systems via hardwired terminal connections and modular fieldbus communication cards. Fixed I/O hardware includes four digital inputs for run, stop, and multi-speed signals, one digital or relay output for status feedback, one analog input accepting 0–10 V or 0/4–20 mA setpoint signals, and one 0–10 V analog output for speed or load monitoring.
For higher-level PLC network integration, the drive features a dedicated function module expansion slot. This slot accommodates plug-in communication modules, including the EMF2133IB module for PROFIBUS-DP, the EMF2171IB and EMF2172IB modules for CANopen, and the EMZ2102IB module for LECOM RS232/RS485 interfaces, enabling real-time control, monitoring, and parameterization over industrial networks.
Diagnostics and Status Indication
Real-time operational monitoring for the EVF8212-E drive is facilitated through two status LEDs located on the front cover. The green LED indicates controller readiness when flashing and continuous drive operation when solid. The red LED illuminates steadily during an active TRIP or failure state, prompting diagnostic investigation.
For detailed fault analysis, historical fault events are recorded in the internal TRIP log register, accessible via parameter C0168. Technicians can read C0168 using the EMZ8201BB operating display or GDC software to identify recent drive faults, trace intermittent trip causes, and confirm system readiness.
Status LED Indicators
| LED | Color/Status | Meaning |
|---|---|---|
| Red LED (FAIL / TRIP) | Red - Solid | Indicates active drive fault / TRIP condition. If steady red accompanied by non-clearing hardware trip, indicates internal control board or power section failure requiring unit repair or replacement. |
| Green LED (READY / OPERATE) | Green - Flashing / Continuous | Indicates drive is powered and operational (green flashing = controller inhibit / ready; green continuous = drive running / enabled). |
Replacement and Spare Part Considerations
When replacing an existing Lenze 00400033 EVF8212-E drive, it is essential to ensure that the replacement matches the original electrical and mechanical specifications. The unit requires a 230 V AC power supply (190–260 V AC) and delivers up to 7.0 A continuous output current (10.5 A maximum overload). Physical mounting requires panel space sufficient for its integrated EMC filter and appropriate airflow for heatsink cooling.
Before putting a spare inverter into service, parameter alignment is critical. Ensure that any attached function modules—such as PROFIBUS, CANopen, or LECOM interfaces—are transferred to the replacement unit. Standard parameter profiles must be configured or uploaded from backup files using GDC software to match the application's exact acceleration rates, current limits, and terminal assignments. While the 8200 series is legacy hardware, modern retrofits may utilize successor drive lines such as the Lenze i510 or i550 series.
Error Codes & Fault Codes
The following error codes may be displayed during operation or diagnostics:
| Code | Name | Description | Possible Cause | Recommended Action |
|---|---|---|---|---|
| OC1 | Short Circuit / Overcurrent | Short circuit at motor output terminals, earth fault, or excessive current during acceleration. | Short circuit in motor cable or motor winding, ground fault, acceleration ramp time set too short, motor incorrectly dimensioned. | Check motor cable and motor insulation for short circuit or ground fault. Increase acceleration time (C0012). Check motor sizing. |
| OC2 | Deceleration Overcurrent | Overcurrent during deceleration phase. | Deceleration ramp time set too short, fast deceleration of high inertia load without braking chopper / resistor. | Increase deceleration ramp time (C0013). Install external braking module / braking resistor if required. |
| OC5 | Overcurrent during Constant Speed | Overcurrent during constant speed operation or load jump. | Sudden load jump, mechanical blockage, motor overload. | Inspect mechanical load and motor shaft for jam or overload. Check V/f characteristic setting. |
| OE | DC Bus Overvoltage | DC bus voltage exceeded maximum allowable threshold. | Regenerative energy from motor during deceleration too high, main supply input voltage too high. | Increase deceleration time (C0013), fit braking resistor, check mains supply voltage level. |
| UE | DC Bus Undervoltage | DC bus voltage dropped below minimum operating limit. | Mains supply failure, main supply voltage too low, input phase loss, power supply brownout. | Measure mains voltage, check supply fuses, verify line connection to drive input terminals L1, L2, L3. |
| OH | Heatsink Overtemperature | Inverter heatsink temperature exceeded critical threshold (>85°C / 90°C). | Inadequate cabinet ventilation, cooling fan failure, heatsink clogged with dust, high ambient temperature, continuous overload. | Clean heatsink, ensure panel fan operates correctly, check cabinet cooling and ambient temperature. |
| OH4 | Motor Overtemperature | Motor temperature sensor (PTC/TK) connected to terminals T1/T2 triggered. | Motor thermal overload, insufficient motor cooling at low speed, defective PTC sensor wire. | Allow motor to cool down, check motor load and forced ventilation fan, check connection cable to T1/T2. |
| OL | Inverter Overload (I x t) | Continuous current load exceeding 100% rated current for prolonged duration. | Motor drawing excessive continuous current, drive under-dimensioned for mechanical load. | Reduce mechanical load, check drive sizing against actual motor full-load current. |
| CE0 | Communication Error | Communication interruption between function module (LECOM / PROFIBUS / CANopen) and drive control board. | Loose plug-in module, bus cable disconnected, fieldbus master timeout, noisy ground connection. | Check function module seating, verify fieldbus cable wiring and bus termination resistors. |
| EE | EEPROM Memory Fault | Checksum failure or write error in internal EEPROM memory. | Internal EEPROM failure, corrupted parameter memory due to power drop during write operation. | Internal hardware / board-level memory fault — re-initialize default parameters via C0002. If fault persists, return unit for repair or replace inverter. |
| LP | Phase Failure | Loss of one input AC mains line phase. | Blown supply fuse, broken AC line conductor, severe mains voltage unbalance. | Check input line supply fuses and AC line voltage across all input phases. |
| H05 | Internal Hardware Error | Internal control board or power stage fault detected during self-test. | Internal component defect or control electronics malfunction. | Internal board failure — turn off supply and re-power unit. If error remains, return unit for repair or replacement. |
| NMAX | Speed Limit Exceeded | Motor actual speed exceeded maximum speed setting (C0011). | Overhauling load driving motor faster than set frequency, improper gain settings. | Check mechanical load control, verify parameter C0011 setting. |
| P12 | Parameter Set Error | Inconsistent parameter set loaded or parameter error during changeover. | Incomplete parameter transfer or invalid parameter value combination. | Reload standard default parameter set via C0002 and re-commission drive. |
Frequently Asked Questions
What software is required to configure the Lenze 00400033 EVF8212-E frequency inverter?
The drive can be configured using Lenze Global Drive Control (GDC) software or programmed directly using plug-in operating keypads such as the EMZ8201BB or EMZ8202BB.
What input supply voltage does the EVF8212-E require?
The EVF8212-E operates on a 230 V AC supply with an allowable input range of 190 V to 260 V AC, accepting either single-phase or three-phase input power connections.
What control methods does the Lenze EVF8212-E support?
It supports linear or quadratic V/f characteristic curves as well as sensorless vector control (SLVC) for precise speed and torque regulation under varying load conditions.
How can I review diagnostic fault history on the EVF8212-E?
Active and past TRIP fault codes can be reviewed by accessing parameter register C0168 via an attached keypad or using Lenze Global Drive Control (GDC) software.
Which fieldbus communication options are supported by this inverter?
The drive features a function module expansion slot supporting optional plug-in interfaces, including the EMF2133IB for PROFIBUS-DP, EMF2171IB/EMF2172IB for CANopen, and EMZ2102IB for LECOM RS232/RS485.
