Lenze 13549051 MCA19S35-RV0P2-B28R-ST5F10N-P0SU Servo Motor
Het item werd toegevoegd aan uw offerteaanvraag
Product Information

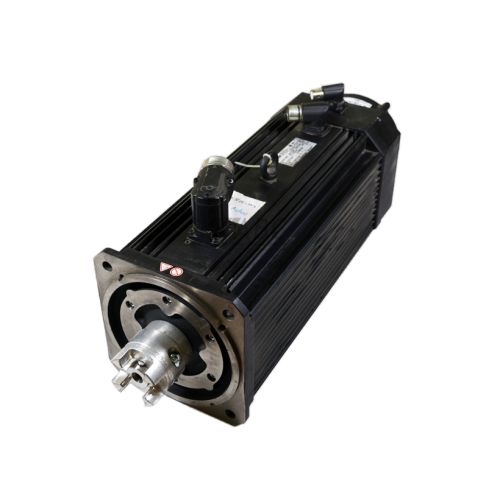

The Lenze 13549051 (model designation MCA19S35-RV0P2-B28R-ST5F10N-P0SU) is an asynchronous compact servo motor from the Lenze MCA series, engineered for dynamic, high-throughput motion control tasks. Built in frame size 19, this motor delivers 10.6 kW rated power, 29 Nm rated torque, and a nominal speed of 3500 rpm, with maximum operating speeds reaching up to 6000 rpm. To sustain continuous high power density operation without thermal degradation, the motor is fitted with an integrated forced ventilation blower system. Reliable holding capability during stopped conditions or power loss is ensured by a built-in B28R holding brake providing 28 Nm of holding torque, while high-accuracy positioning is managed via an ST5F10N feedback encoder.
Power and encoder signals are routed using heavy-duty circular plug connectors designed for quick installation in industrial control environments. The integrated ST5F10N feedback encoder features an electronic nameplate that automatically transfers motor operating parameters directly to compatible Lenze servo drives, such as the 9400 HighLine or i700 series. When installing a replacement motor, this automatic parameter transfer simplifies commissioning and reduces the likelihood of manual configuration errors. Parameter alignment, software diagnostics, and commissioning procedures can be performed using Lenze EASY Starter engineering software. ABC Industrial Parts can support maintenance technicians needing fully tested replacement units and technical guidance for drive integration.
For operational safety and fault detection, the motor features an integrated winding temperature sensor that supplies continuous thermal monitoring data and trip or warning signals to the attached inverter drive. Software-level diagnostics via Lenze EASY Starter monitor thermal conditions, encoder signals, phase balance, and motor stall states. If internal winding damage or hardware failures occur within the motor or feedback encoder, field repair is generally not feasible. In these instances, replacing the faulty component with a pre-tested exchange unit from ABC Industrial Parts offers the most effective route to restore production.
Technical Specifications
| Manufacturer | Lenze |
| Part Number | 13549051 |
| Model / Type Designation | MCA19S35-RV0P2-B28R-ST5F10N-P0SU |
| Component Type | Asynchronous Servo Motor |
| Product Family | MCA Compact Servo Motors |
| Frame Size | 19 |
| Rated Power | 10.6 kW |
| Rated Torque | 29 Nm |
| Rated Speed | 3500 rpm |
| Maximum Speed | 6000 rpm |
| Rated Current | 27.5 A |
| Rated Frequency | 120 Hz |
| Holding Torque (Brake) | 28 Nm |
| Cooling Type | Forced Ventilation (Blower) |
Programming and Configuration
Commissioning and parameter configuration for the Lenze 13549051 motor are streamlined through the electronic nameplate stored within the ST5F10N encoder. When connected to compatible Lenze drive hardware, such as the 9400 HighLine or i700 series, the drive automatically reads the motor data—including thermal limits, rated power, and current specifications—directly from the memory chip, eliminating manual parameter entry.
Advanced setup, drive tuning, and system monitoring are executed using Lenze EASY Starter engineering software. Through this engineering environment, technicians can confirm encoder communication, verify thermal limits, and calibrate motor response for specific dynamic positioning axes.
Communication and System Integration
The Lenze 13549051 utilizes industrial circular plug connectors for both power input and encoder feedback signals. These standard circular connections ensure secure, vibration-resistant wiring integration within automated machinery.
Designed for system integration with Lenze motion control architectures, the motor operates seamlessly alongside Lenze 9400 HighLine Servo Inverters and Lenze i700 Servo Drives. Feedback lines carry both position data from the ST5F10N encoder and thermal status signals from the embedded winding temperature sensor back to the drive.
Diagnostics and Status Indication
Operational diagnostics are provided through real-time sensors and software monitoring tools. An integrated thermal sensor embedded in the motor windings continuously monitors temperature and outputs trip or warning signals to the attached inverter drive in the event of excessive heat buildup.
System health can also be monitored via Lenze EASY Starter software. The software interface displays comprehensive diagnostic metrics including thermal status, encoder feedback integrity, phase current balance, and stall conditions.
Replacement and Spare Part Considerations
When selecting a replacement unit, ensure the model designation MCA19S35-RV0P2-B28R-ST5F10N-P0SU matches the original specification. Exact model alignment guarantees compatibility with the existing frame size 19 mounting, circular plug layout, and drive controller configuration.
The replacement motor must include the B28R 28 Nm holding brake, ST5F10N encoder, and forced ventilation system. Because motor data is stored electronically inside the encoder memory, connecting the spare to a compatible Lenze drive allows automatic parameter identification, reducing downtime during spare replacement.
Frequently Asked Questions
Which Lenze servo drives are compatible with the 13549051 motor?
The Lenze 13549051 servo motor is compatible with Lenze 9400 HighLine Servo Inverters and Lenze i700 Servo Drives, which automatically identify the motor via its electronic nameplate.
How does the electronic nameplate simplify replacement setup?
The electronic nameplate inside the ST5F10N encoder automatically transfers stored motor parameters to compatible Lenze drives upon connection, eliminating manual parameterization.
What cooling method is used on the Lenze 13549051 motor?
This motor features a forced ventilation system with an integrated cooling blower to maintain continuous high power density operation.
What software is used to parameterize and diagnose this motor?
Lenze EASY Starter engineering software is used to perform setup, parameter adjustments, and drive-level diagnostic monitoring.
What is the holding torque rating of the integrated brake?
The integrated B28R holding brake provides a holding torque rating of 28 Nm.
